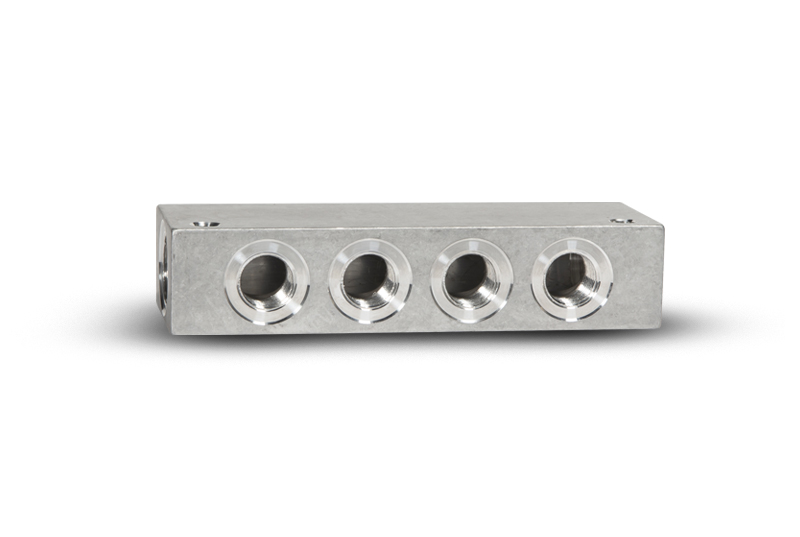

In-line distribution manifold with groove

Type

Inlets 1/8 Outlets M5
Inlets 1/4 Outlets 1/8
Inlets 3/8 Outlets 1/4
Inlets 1/2 Outlets 3/8
Inlets 1/2 Outlets 1/2

General specifications

Material: aluminium
Treatment: tumbling
On request: anodising

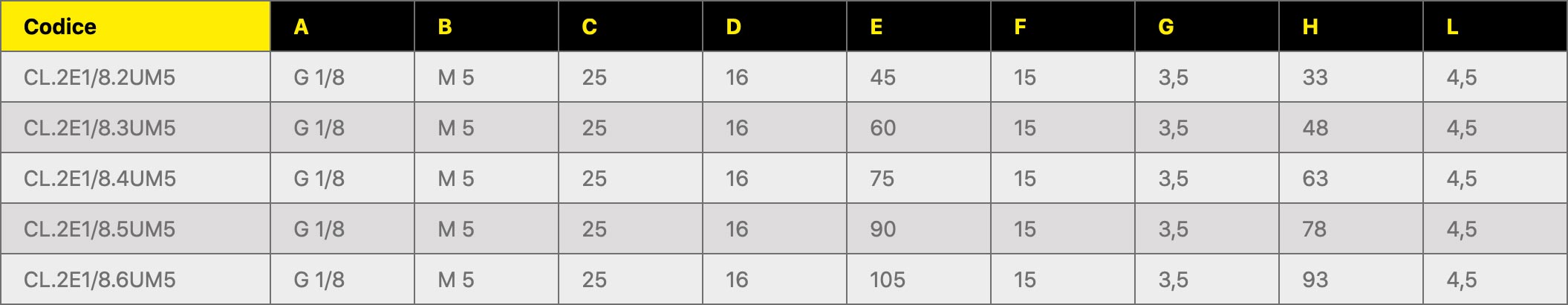

In-line distribution manifold | 2 inlets 1/8 - outlets M5

Item	A	B	C	D	E	F	G	H	L	Technical design
CL.2E1/8.2UM5	G 1/8	M 5	25	16	45	15	3,5	33	4,5	Visualizza .pdf
CL.2E1/8.3UM5	G 1/8	M 5	25	16	60	15	3,5	48	4,5	Visualizza .pdf
CL.2E1/8.4UM5	G 1/8	M 5	25	16	75	15	3,5	63	4,5	Visualizza .pdf
CL.2E1/8.5UM5	G 1/8	M 5	25	16	90	15	3,5	78	4,5	Visualizza .pdf
CL.2E1/8.6UM5	G 1/8	M 5	25	16	105	15	3,5	93	4,5	Visualizza .pdf

Availability of step and iges files of each item. Write to info@ifom.it or call +39 0346 21657

In-line distribution manifold | 2 inlets 1/4 - outlets 1/8

Item	A	B	C	D	E	F	G	H	L	Technical design
CL.2E1/4.2U1/8	G 1/4	G 1/8	30	20	54	18	4,5	45	4,5	Visualizza .pdf
CL.2E1/4.3U1/8	G 1/4	G 1/8	30	20	72	18	4,5	63	4,5	Visualizza .pdf
CL.2E1/4.4U1/8	G 1/4	G 1/8	30	20	90	18	4,5	81	4,5	Visualizza .pdf
CL.2E1/4.5U1/8	G 1/4	G 1/8	30	20	108	18	4,5	99	4,5	Visualizza .pdf
CL.2E1/4.6U1/8	G 1/4	G 1/8	30	20	126	18	4,5	117	4,5	Visualizza .pdf

Availability of step and iges files of each item. Write to info@ifom.it or call +39 0346 21657

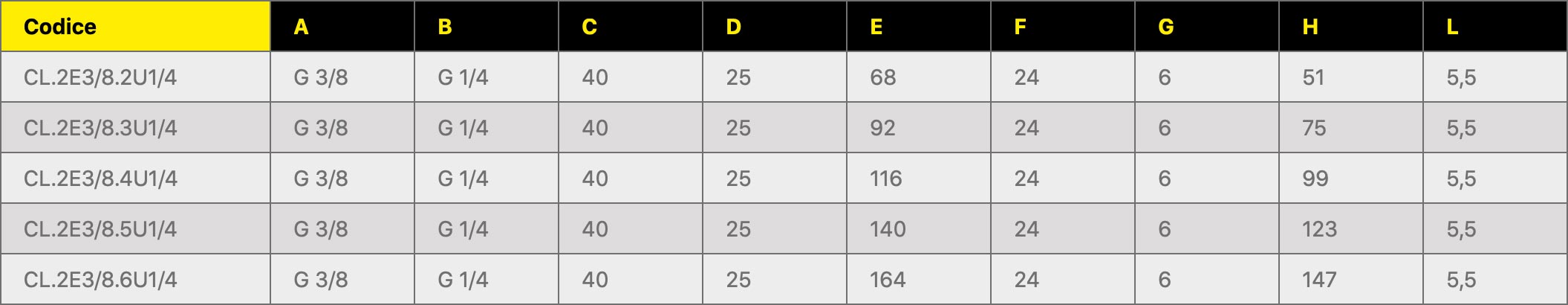

In-line distribution manifold | 2 inlets 3/8 - outlets 1/4

Item	A	B	C	D	E	F	G	H	L	Technical design
CL.2E3/8.2U1/4	G 3/8	G 1/4	40	25	68	24	6	51	5,5	Visualizza .pdf
CL.2E3/8.3U1/4	G 3/8	G 1/4	40	25	92	24	6	75	5,5	Visualizza .pdf
CL.2E3/8.4U1/4	G 3/8	G 1/4	40	25	116	24	6	99	5,5	Visualizza .pdf
CL.2E3/8.5U1/4	G 3/8	G 1/4	40	25	140	24	6	123	5,5	Visualizza .pdf
CL.2E3/8.6U1/4	G 3/8	G 1/4	40	25	164	24	6	147	5,5	Visualizza .pdf

Availability of step and iges files of each item. Write to info@ifom.it or call +39 0346 21657

In-line distribution manifold | 2 inlets 1/2 - outlets 3/8

Item	A	B	C	D	E	F	G	H	L	Technical design
CL.2E1/2.2U3/8	G 1/2	G 3/8	50	30	78	26	6,5	59	5,5	Visualizza .pdf
CL.2E1/2.3U3/8	G 1/2	G 3/8	50	30	104	26	6,5	85	5,5	Visualizza .pdf
CL.2E1/2.4U3/8	G 1/2	G 3/8	50	30	130	26	6,5	111	5,5	Visualizza .pdf
CL.2E1/2.5U3/8	G 1/2	G 3/8	50	30	156	26	6,5	137	5,5	Visualizza .pdf
CL.2E1/2.6U3/8	G 1/2	G 3/8	50	30	182	26	6,5	163	5,5	Visualizza .pdf

Availability of step and iges files of each item. Write to info@ifom.it or call +39 0346 21657

In-line distribution manifold | 2 inlets 1/2 - outlets 1/2

Item	A	B	C	D	E	F	G	H	L	Technical design
CL.2E1/2.2U1/2	G 1/2	G 1/2	50	30	102	34	6,5	83	5,5	Visualizza .pdf
CL.2E1/2.3U1/2	G 1/2	G 1/2	50	30	136	34	6,5	117	5,5	Visualizza .pdf
CL.2E1/2.4U1/2	G 1/2	G 1/2	50	30	170	34	6,5	151	5,5	Visualizza .pdf
CL.2E1/2.5U1/2	G 1/2	G 1/2	50	30	204	34	6,5	185	5,5	Visualizza .pdf
CL.2E1/2.6U1/2	G 1/2	G 1/2	50	30	238	34	6,5	219	5,5	Visualizza .pdf

Availability of step and iges files of each item. Write to info@ifom.it or call +39 0346 21657
