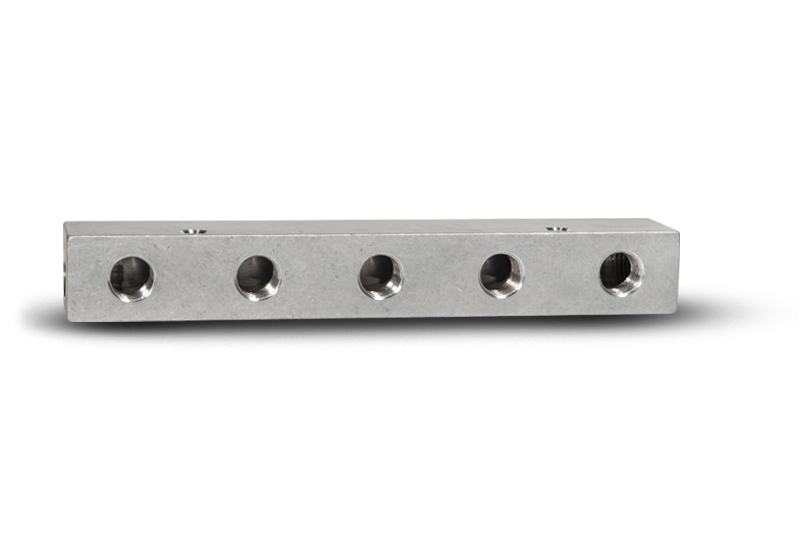

In-line distribution manifold – long range

Type

Inlets 1/4 Outlets 1/8
Inlets 3/8 Outlets 1/8
Inlets 3/8 Outlets 1/4
Inlets 1/2 Outlets 1/4
Inlets 1/2 Outlets 3/8

General specifications

Material: aluminium
Treatment: tumbling
On request: anodising

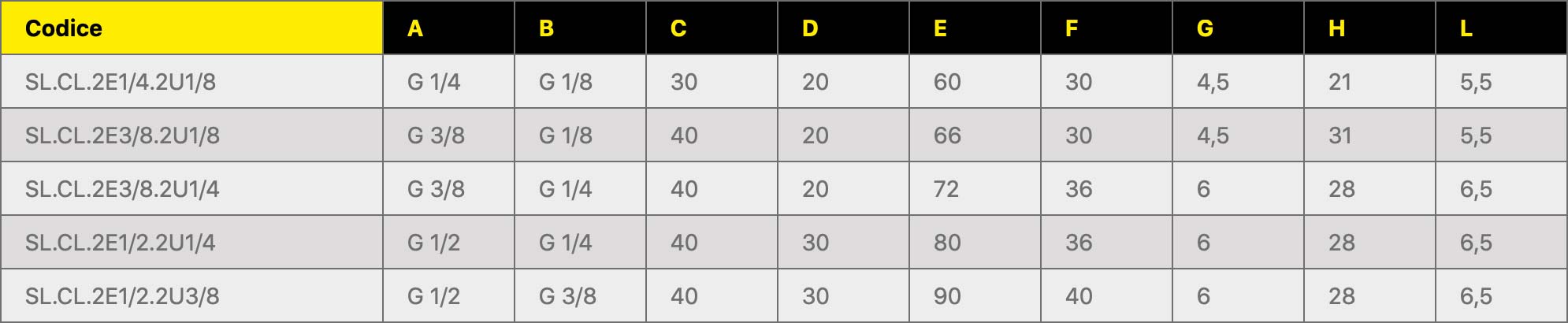

In-line manifold LR | 2 inlets 1/4 - 3/8 - 1/2

Item
A
B
C
D
E
F
G
H
L
Technical design
SL.CL.2E1/4.2U1/8
G 1/4
G 1/8
30
20
60
30
4,5
21
5,5
Visualizza .pdf
SL.CL.2E3/8.2U1/8
G 3/8
G 1/8
40
20
66
30
4,5
31
5,5
Visualizza .pdf
SL.CL.2E3/8.2U1/4
G 3/8
G 1/4
40
20
72
36
6
28
6,5
Visualizza .pdf
SL.CL.2E1/2.2U1/4
G 1/2
G 1/4
40
30
80
36
6
28
6,5
Visualizza .pdf
SL.CL.2E1/2.2U3/8
G 1/2
G 3/8
40
30
90
40
6
28
6,5
Visualizza .pdf
View data sheet

Availability of step and iges files of each item. Write to info@ifom.it or call +39 0346 21657

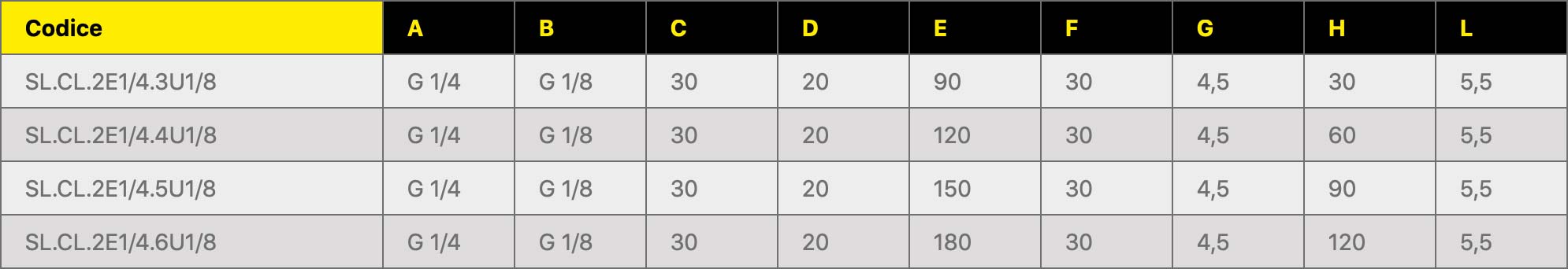

In-line manifold LR | 2 inlets 1/4 - outlets 1/8

Item
A
B
C
D
E
F
G
H
L
Technical design
SL.CL.2E1/4.3U1/8
G 1/4
G 1/8
30
20
90
30
4,5
30
5,5
Visualizza .pdf
SL.CL.2E1/4.4U1/8
G 1/4
G 1/8
30
20
120
30
4,5
60
5,5
Visualizza .pdf
SL.CL.2E1/4.5U1/8
G 1/4
G 1/8
30
20
150
30
4,5
90
5,5
Visualizza .pdf
SL.CL.2E1/4.6U1/8
G 1/4
G 1/8
30
20
180
30
4,5
120
5,5
Visualizza .pdf
View data sheet

Availability of step and iges files of each item. Write to info@ifom.it or call +39 0346 21657

In-line manifold LR | EVT

Item
A
B
C
D
E
F
G
H
L
Technical design
EVT 15403
G 1/2
G 1/4
40
30
116
36
6
36
6,5
Visualizza .pdf
EVT 15404
G 1/2
G 1/4
40
30
152
36
6
72
6,5
Visualizza .pdf
EVT 15405
G 1/2
G 1/4
40
30
188
36
6
108
6,5
Visualizza .pdf
EVT 15406
G 1/2
G 1/4
40
30
224
36
6
144
6,5
Visualizza .pdf
View data sheet

Availability of step and iges files of each item. Write to info@ifom.it or call +39 0346 21657

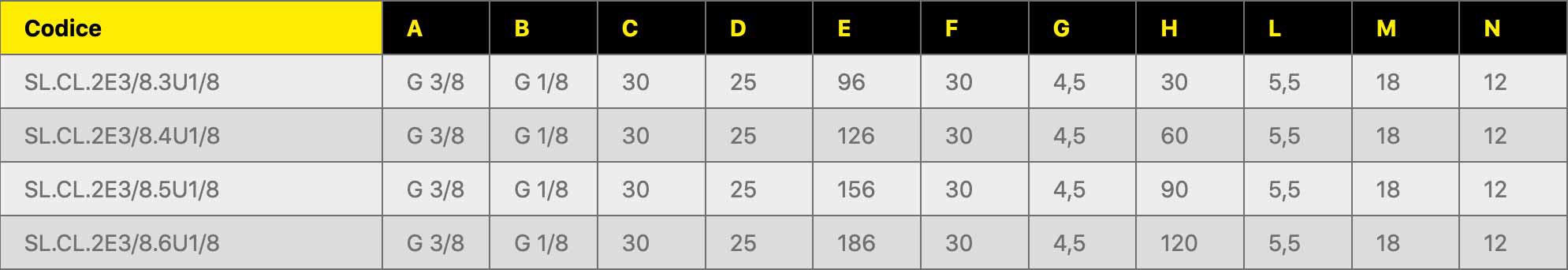

In-line manifold LR | 2 inlets 3/8 - outlets 1/8

Item
A
B
C
D
E
F
G
H
L
M
N
Technical design
SL.CL.2E3/8.3U1/8
G 3/8
G 1/8
30
25
96
30
4,5
30
5,5
18
12
Visualizza .pdf
SL.CL.2E3/8.4U1/8
G 3/8
G 1/8
30
25
126
30
4,5
60
5,5
18
12
Visualizza .pdf
SL.CL.2E3/8.5U1/8
G 3/8
G 1/8
30
25
156
30
4,5
90
5,5
18
12
Visualizza .pdf
SL.CL.2E3/8.6U1/8
G 3/8
G 1/8
30
25
186
30
4,5
120
5,5
18
12
Visualizza .pdf
View data sheet

Availability of step and iges files of each item. Write to info@ifom.it or call +39 0346 21657

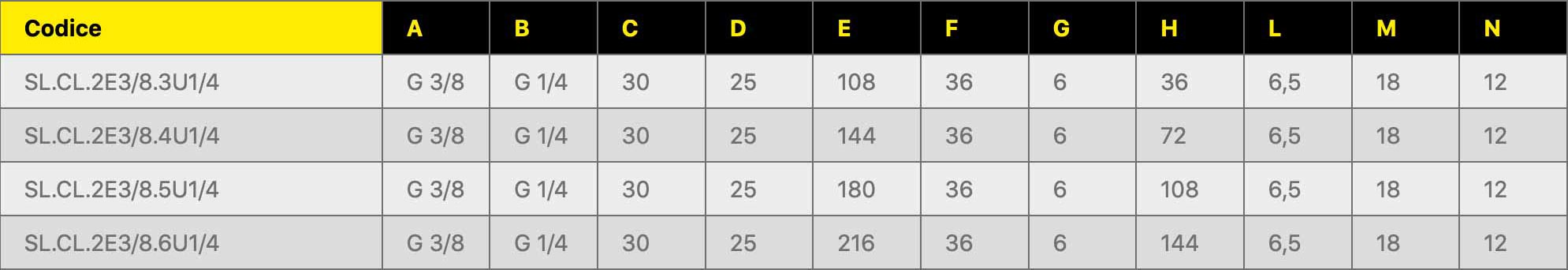

In-line manifold LR | 2 inlets 3/8 - outlets 1/4

Item
A
B
C
D
E
F
G
H
L
M
N
Technical design
SL.CL.2E3/8.3U1/4
G 3/8
G 1/4
30
25
108
36
6
36
6,5
18
12
Visualizza .pdf
SL.CL.2E3/8.4U1/4
G 3/8
G 1/4
30
25
144
36
6
72
6,5
18
12
Visualizza .pdf
SL.CL.2E3/8.5U1/4
G 3/8
G 1/4
30
25
180
36
6
108
6,5
18
12
Visualizza .pdf
SL.CL.2E3/8.6U1/4
G 3/8
G 1/4
30
25
216
36
6
144
6,5
18
12
Visualizza .pdf
View data sheet

Availability of step and iges files of each item. Write to info@ifom.it or call +39 0346 21657

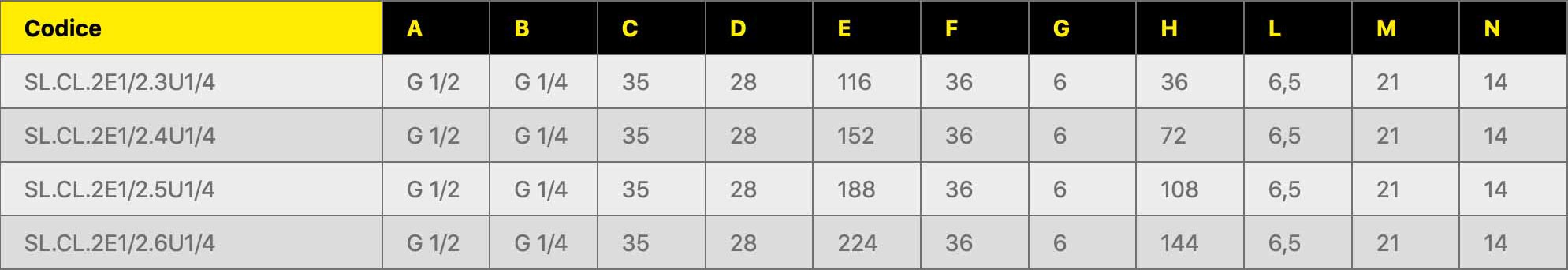

In-line manifold LR | 2 inlets 1/2 - outlets 1/4

Item
A
B
C
D
E
F
G
H
L
M
N
Technical design
SL.CL.2E1/2.3U1/4
G 1/2
G 1/4
35
28
116
36
6
36
6,5
21
14
Visualizza .pdf
SL.CL.2E1/2.4U1/4
G 1/2
G 1/4
35
28
152
36
6
72
6,5
21
14
Visualizza .pdf
SL.CL.2E1/2.5U1/4
G 1/2
G 1/4
35
28
188
36
6
108
6,5
21
14
Visualizza .pdf
SL.CL.2E1/2.6U1/4
G 1/2
G 1/4
35
28
224
36
6
144
6,5
21
14
Visualizza .pdf
View data sheet

Availability of step and iges files of each item. Write to info@ifom.it or call +39 0346 21657

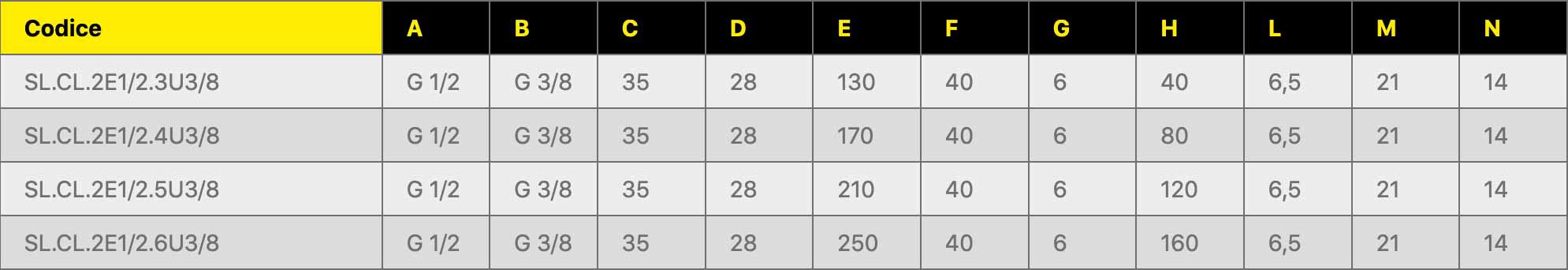

In-line manifold LR | 2 inlets 1/2 - outlets 3/8

Item
A
B
C
D
E
F
G
H
L
M
N
Technical design
SL.CL.2E1/2.3U3/8
G 1/2
G 3/8
35
28
130
40
6
40
6,5
21
14
Visualizza .pdf
SL.CL.2E1/2.4U3/8
G 1/2
G 3/8
35
28
170
40
6
80
6,5
21
14
Visualizza .pdf
SL.CL.2E1/2.5U3/8
G 1/2
G 3/8
35
28
210
40
6
120
6,5
21
14
Visualizza .pdf
SL.CL.2E1/2.6U3/8
G 1/2
G 3/8
35
28
250
40
6
160
6,5
21
14
Visualizza .pdf
View data sheet

Availability of step and iges files of each item. Write to info@ifom.it or call +39 0346 21657

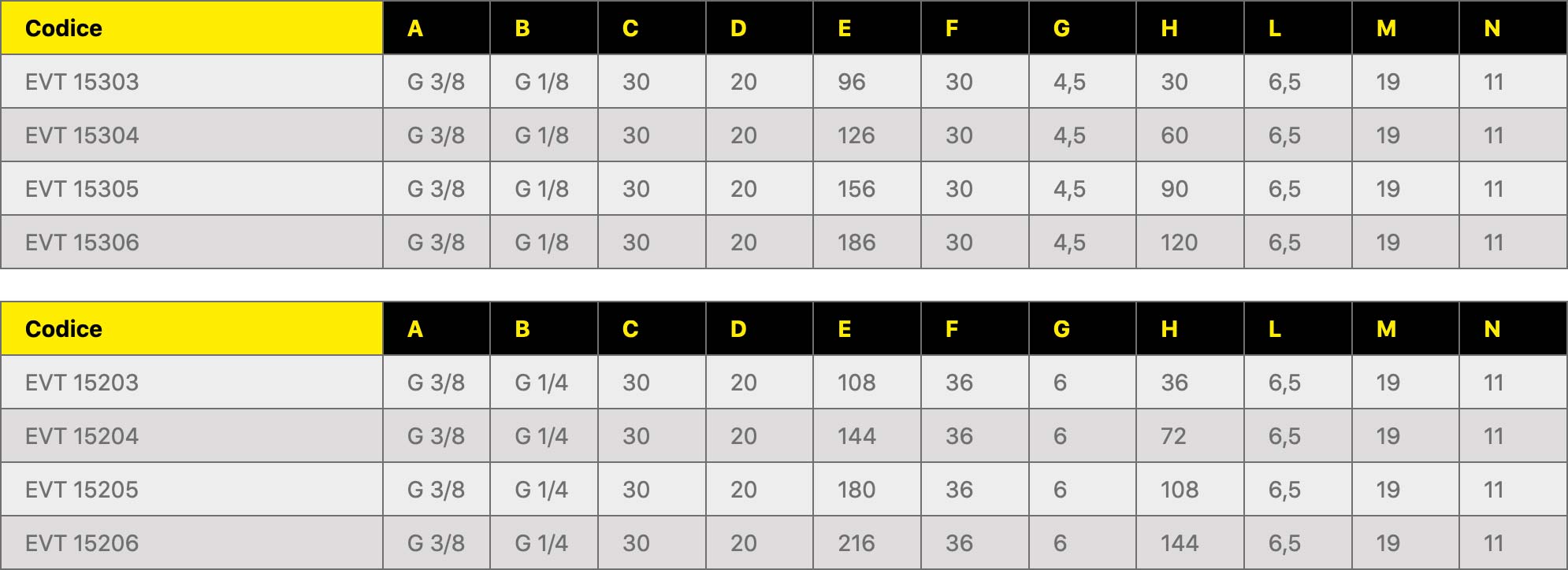

In-line manifold LR | EVT

Item
A
B
C
D
E
F
G
H
L
M
N
Technical design
EVT 15303
G 3/8
G 1/8
30
20
96
30
4,5
30
5,5
19
11
Visualizza .pdf
EVT 15304
G 3/8
G 1/8
30
20
126
30
4,5
60
5,5
19
11
Visualizza .pdf
EVT 15305
G 3/8
G 1/8
30
20
156
30
4,5
90
5,5
19
11
Visualizza .pdf
EVT 15306
G 3/8
G 1/8
30
20
186
30
4,5
120
5,5
19
11
Visualizza .pdf
Item
A
B
C
D
E
F
G
H
L
M
N
Technical design
EVT 15203
G 3/8
G 1/4
30
20
108
36
6
36
6,5
19
11
Visualizza .pdf
EVT 15204
G 3/8
G 1/4
30
20
144
36
6
72
6,5
19
11
Visualizza .pdf
EVT 15205
G 3/8
G 1/4
30
20
180
36
6
108
6,5
19
11
Visualizza .pdf
EVT 15206
G 3/8
G 1/4
30
20
216
36
6
144
6,5
19
11
Visualizza .pdf
View data sheet

Availability of step and iges files of each item. Write to info@ifom.it or call +39 0346 21657

Discover the other IFOM products

In-line distribution manifold with groove

Distribution frame with one side outlets and groove. (for fittings)

Data sheet

Double in-line distribution manifold with groove

Distribution frame with both side outlets and groove. (for fittings)

Data sheet

Double in-line distribution manifold – long range

Distribution frame with both side outlets and wider distance between the outlets

Data sheet

4-Ways distribution manifold with groove

Distribution frame with cross outlets and groove

Data sheet

Discover the other IFOM products

4-Ways distribution manifold with groove

Distribution frame with cross outlets and groove.

Data sheet

In-line distribution manifold with groove

Distribution frame with one side outlets and groove. (for fittings)

Data sheet

Double in-line distribution manifold with groove

Distribution frame with both side outlets and groove. (for fittings)

Data sheet

In-line distribution manifold – long range

Distribution frame with one side outlets and wider distance between the outlets

Data sheet

Double in-line distribution manifold – long range

Distribution frame with both side outlets and wider distance between the outlets

Data sheet

Enquire now

Contact us for quotes, orders or simply for more information about our products and services.
We commit to help you and to satisfy your requests.
