Double in-line distribution manifold with groove

Type

Inlets 1/8 Outlets M5
Inlets 1/4 Outlets 1/8
Inlets 3/8 Outlets 1/4
Inlets 1/2 Outlets 3/8
Inlets 1/2 Outlets 1/2

General specifications

Material: aluminium
Treatment: tumbling
On request: anodising

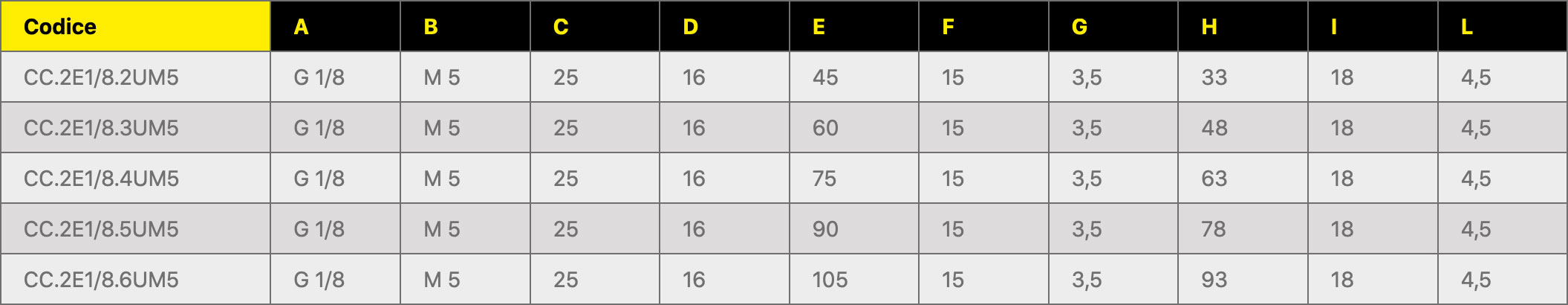

Double in-line distribution manifold | 2 inlets 1/8 - outlets M5

Item
A
B
C
D
E
F
G
H
I
L
Technical design
CC.2E1/8.2UM5
G 1/8
M 5
25
16
45
15
3,5
33
18
4,5
Visualizza .pdf
CC.2E1/8.3UM5
G 1/8
M 5
25
16
60
15
3,5
48
18
4,5
Visualizza .pdf
CC.2E1/8.4UM5
G 1/8
M 5
25
16
75
15
3,5
63
18
4,5
Visualizza .pdf
CC.2E1/8.5UM5
G 1/8
M 5
25
16
90
15
3,5
78
18
4,5
Visualizza .pdf
CC.2E1/8.6UM5
G 1/8
M 5
25
16
105
15
3,5
93
18
4,5
Visualizza .pdf
View data sheet

Availability of step and iges files of each item. Write to info@ifom.it or call +39 0346 21657

Double in-line distribution manifold | 2 inlets 1/4 - outlets 1/8

Item
A
B
C
D
E
F
G
H
I
L
Technical design
CC.2E1/4.2U1/8
G 1/4
G 1/8
30
20
54
18
4,5
45
21
4,5
Visualizza .pdf
CC.2E1/4.3U1/8
G 1/4
G 1/8
30
20
72
18
4,5
63
21
4,5
Visualizza .pdf
CC.2E1/4.4U1/8
G 1/4
G 1/8
30
20
90
18
4,5
81
21
4,5
Visualizza .pdf
CC.2E1/4.5U1/8
G 1/4
G 1/8
30
20
108
18
4,5
99
21
4,5
Visualizza .pdf
CC.2E1/4.6U1/8
G 1/4
G 1/8
30
20
126
18
4,5
117
21
4,5
Visualizza .pdf
View data sheet

Availability of step and iges files of each item. Write to info@ifom.it or call +39 0346 21657

Double in-line distribution manifold | 2 inlets 3/8 - outlets 1/4

Item
A
B
C
D
E
F
G
H
I
L
Technical design
CC.2E3/8.2U1/4
G 3/8
G 1/4
40
25
68
24
6
51
28
5,5
Visualizza .pdf
CC.2E3/8.3U1/4
G 3/8
G 1/4
40
25
92
24
6
75
28
5,5
Visualizza .pdf
CC.2E3/8.4U1/4
G 3/8
G 1/4
40
25
116
24
6
99
28
5,5
Visualizza .pdf
CC.2E3/8.5U1/4
G 3/8
G 1/4
40
25
140
24
6
123
28
5,5
Visualizza .pdf
CC.2E3/8.6U1/4
G 3/8
G 1/4
40
25
164
24
6
147
28
5,5
Visualizza .pdf
View data sheet

Availability of step and iges files of each item. Write to info@ifom.it or call +39 0346 21657

Double in-line distribution manifold | 2 inlets 1/2 - outlets 3/8

Item
A
B
C
D
E
F
G
H
I
L
Technical design
CC.2E1/2.2U3/8
G 1/2
G 3/8
50
30
78
26
6,5
59
37
5,5
Visualizza .pdf
CC.2E1/2.3U3/8
G 1/2
G 3/8
50
30
104
26
6,5
85
37
5,5
Visualizza .pdf
CC.2E1/2.4U3/8
G 1/2
G 3/8
50
30
130
26
6,5
111
37
5,5
Visualizza .pdf
CC.2E1/2.5U3/8
G 1/2
G 3/8
50
30
156
26
6,5
137
37
5,5
Visualizza .pdf
CC.2E1/2.6U3/8
G 1/2
G 3/8
50
30
182
26
6,5
163
37
5,5
Visualizza .pdf
View data sheet

Availability of step and iges files of each item. Write to info@ifom.it or call +39 0346 21657

Double in-line distribution manifold | 2 inlets 1/2 - outlets 1/2

Item
A
B
C
D
E
F
G
H
I
L
Technical design
CC.2E1/2.2U1/2
G 1/2
G 1/2
50
30
102
34
6,5
83
37
5,5
Visualizza .pdf
CC.2E1/2.3U1/2
G 1/2
G 1/2
50
30
136
34
6,5
117
37
5,5
Visualizza .pdf
CC.2E1/2.4U1/2
G 1/2
G 1/2
50
30
170
34
6,5
151
37
5,5
Visualizza .pdf
CC.2E1/2.5U1/2
G 1/2
G 1/2
50
30
204
34
6,5
185
37
5,5
Visualizza .pdf
CC.2E1/2.6U1/2
G 1/2
G 1/2
50
30
238
34
6,5
219
37
5,5
Visualizza .pdf
View data sheet

Availability of step and iges files of each item. Write to info@ifom.it or call +39 0346 21657
