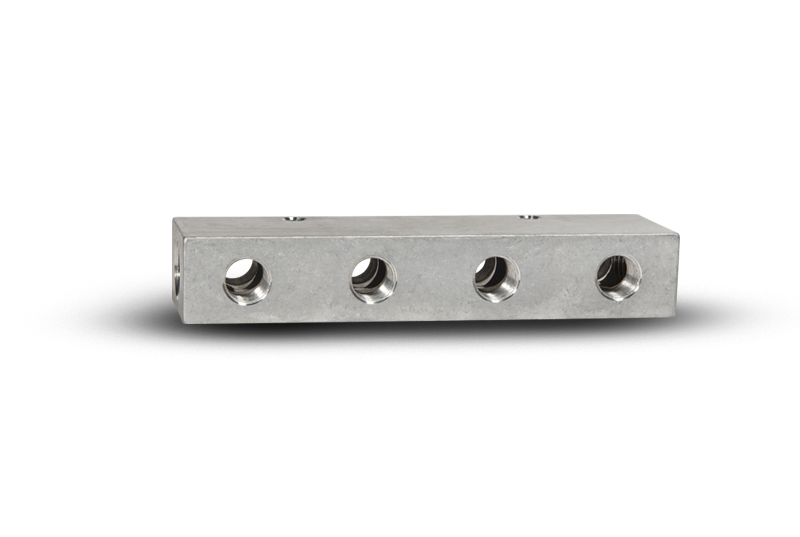

double in-line distribution manifold, long range

Type

Inlets 1/4 Outlets 1/8
Inlets 3/8 Outlets 1/8
Inlets 3/8 Outlets 1/4
Inlets 1/2 Outlets 1/4

General specifications

Material: aluminium Treatment: tumbling On request: anodising

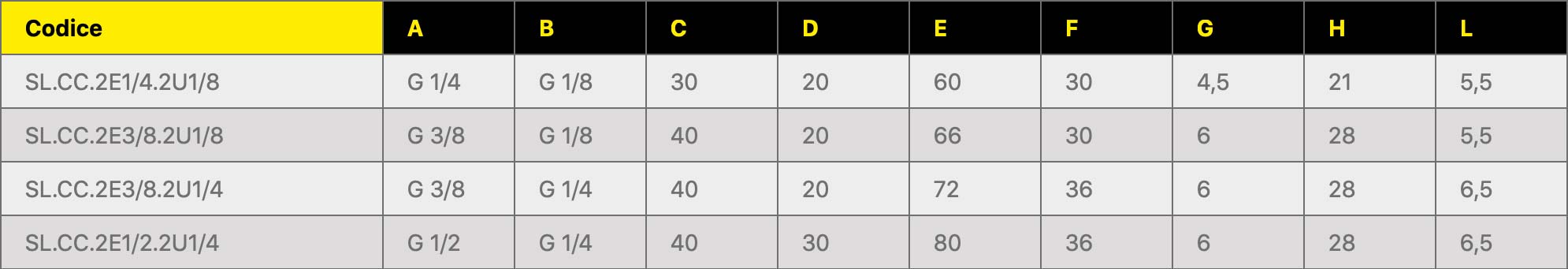

Double in-line manifold LR | 2 inlets 1/4 - 3/8 - 1/2

Item
A
B
C
D
E
F
G
H
L
Technical design
SL.CC.2E1/4.2U1/8
G 1/4
G 1/8
30
20
60
30
4,5
21
5,5
Visualizza .pdf
SL.CC.2E3/8.2U1/8
G 3/8
G 1/8
40
20
66
30
6
28
5,5
Visualizza .pdf
SL.CC.2E3/8.2U1/4
G 3/8
G 1/4
40
20
72
36
6
28
6,5
Visualizza .pdf
SL.CC.2E1/2.2U1/4
G 1/2
G 1/4
40
30
80
36
6
28
6,5
Visualizza .pdf
View data sheet

Availability of step and iges files of each item. Write to info@ifom.it or call +39 0346 21657

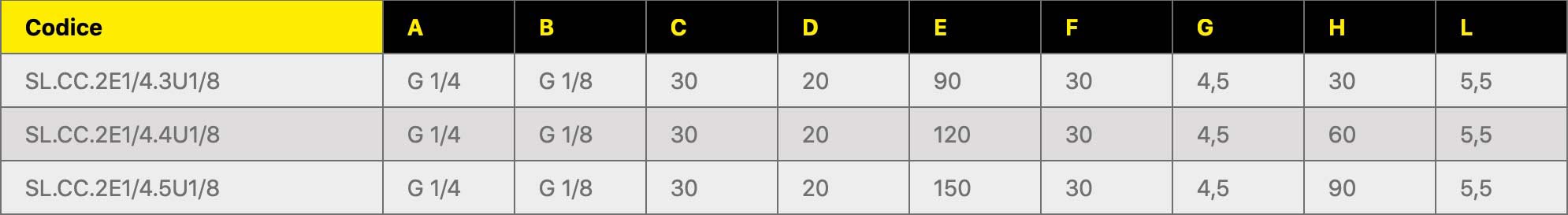

Double in-line manifold LR | 2 inlets 1/4 - outlets 1/8

Item
A
B
C
D
E
F
G
H
L
Technical design
SL.CC.2E1/4.3U1/8
G 1/4
G 1/8
30
20
90
30
4,5
30
5,5
Visualizza .pdf
SL.CC.2E1/4.4U1/8
G 1/4
G 1/8
30
20
120
30
4,5
60
5,5
Visualizza .pdf
SL.CC.2E1/4.5U1/8
G 1/4
G 1/8
30
20
150
30
4,5
90
5,5
Visualizza .pdf
View data sheet

Availability of step and iges files of each item. Write to info@ifom.it or call +39 0346 21657

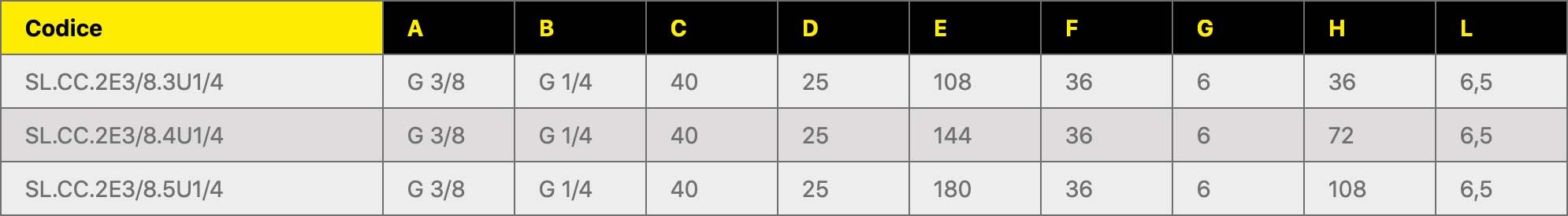

Double in-line manifold LR | 2 inlets 3/8 - outlets 1/4

Item
A
B
C
D
E
F
G
H
L
Technical design
SL.CC.2E3/8.3U1/4
G 3/8
G 1/4
40
25
108
36
6
36
6,5
Visualizza .pdf
SL.CC.2E3/8.4U1/4
G 3/8
G 1/4
40
25
144
36
6
72
6,5
Visualizza .pdf
SL.CC.2E3/8.5U1/4
G 3/8
G 1/4
40
25
180
36
6
108
6,5
Visualizza .pdf
View data sheet

Availability of step and iges files of each item. Write to info@ifom.it or call +39 0346 21657

Double in-line manifold LR | 2 inlets 1/2 - outlets 1/4

Item
A
B
C
D
E
F
G
H
L
Technical design
SL.CC.2E1/2.3U1/4
G 1/2
G 1/4
40
30
116
36
6
36
6,5
Visualizza .pdf
SL.CC.2E1/2.4U1/4
G 1/2
G 1/4
40
30
152
36
6
72
6,5
Visualizza .pdf
SL.CC.2E1/2.5U1/4
G 1/2
G 1/4
40
30
188
36
6
108
6,5
Visualizza .pdf
View data sheet

Availability of step and iges files of each item. Write to info@ifom.it or call +39 0346 21657

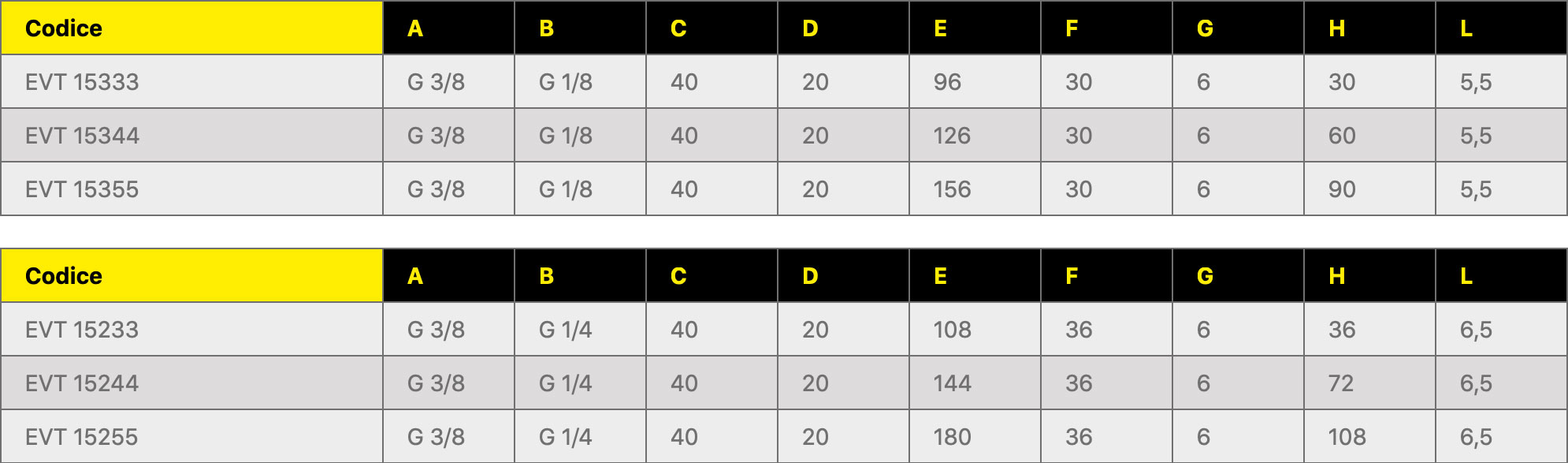

Double in-line manifold LR | EVT

Item
A
B
C
D
E
F
G
H
L
Technical design
EVT 15333
G 3/8
G 1/8
40
20
96
30
6
30
5,5
Visualizza .pdf
EVT 15344
G 3/8
G 1/8
40
20
126
30
6
60
5,5
Visualizza .pdf
EVT 15355
G 3/8
G 1/8
40
20
156
30
6
90
5,5
Visualizza .pdf
Item
A
B
C
D
E
F
G
H
L
Technical design
EVT 15233
G 3/8
G 1/4
40
20
108
36
6
36
6,5
Visualizza .pdf
EVT 15244
G 3/8
G 1/4
40
20
144
36
6
72
6,5
Visualizza .pdf
EVT 15255
G 3/8
G 1/4
40
20
180
36
6
108
6,5
Visualizza .pdf
View data sheet

Availability of step and iges files of each item. Write to info@ifom.it or call +39 0346 21657
